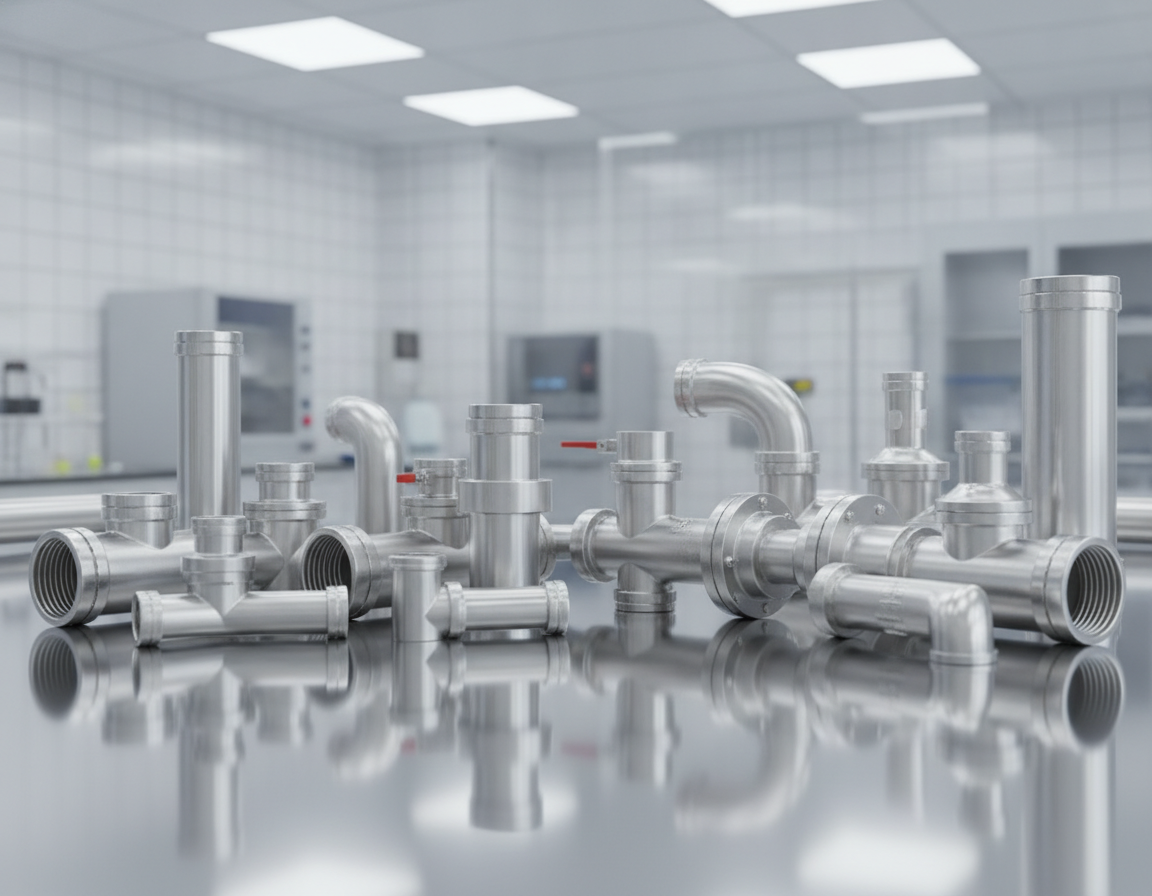

Stainless steel sanitary pipe fittings are critical in maintaining hygienic systems across multiple industries. Components such as ferrules, clamps, sanitary valves, and fittings are specified to maintain clean fluid paths. They minimize contamination risk while making cleaning, inspection, and maintenance easier.
Sanitary Pipe Fittings Stainless
Selecting the right Hygienic Fittings and Ss Sanitary Fittings affects product safety, uptime, and regulatory compliance. Material grade, surface finish, and connection compatibility are essential selection factors. These details control how easily the system can be cleaned, validated, and maintained.
Operations teams depend on reliable suppliers and detailed catalogs when choosing the correct parts. Brands like CSI and distributors such as Installation Parts Supply supply essential information. Their catalog listings, lead times, and customer reviews can support purchasing decisions for Sanitary Valves And Fittings.
Key Takeaways
- Stainless Steel Sanitary Pipe Fittings protect contamination control in clean process systems.
- Cleanability and corrosion resistance depend on material grade and surface finish.
- Hygienic Fittings compatibility lowers downtime during maintenance and upgrades.
- Catalogs and reviews from CSI and Installation Parts Supply support dependable sourcing.
- Choosing the right Sanitary Valves And Fittings supports product quality and regulatory compliance.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems depend on components designed for safety and efficiency. A sanitary fitting must have smooth surfaces, tight seals, and easy cleaning access. These features reduce contamination and support clean-in-place and sterilize-in-place procedures.
What Sanitary Fittings Are Designed To Do
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. That design helps prevent bacterial growth and helps maintain product purity during transfer and processing. Their design makes possible faster cleaning while reducing cross-contamination risk.
Industries That Use Hygienic Fittings
Food processors rely on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to preserve flavor and shelf life. Pharmaceutical facilities choose fittings that meet high-level regulatory and validation requirements.
Biotech facilities need reliable sanitary connections for fermentation, cell culture, and bioprocessing. These industries value traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Works Best For Hygienic Systems
Stainless steel is widely chosen because it delivers corrosion resistance, mechanical strength, and easy cleanability. Grades such as 304 and 316L can tolerate cleaning chemicals, process fluids, and elevated temperatures. They also support surface finishes such as electropolishing and low Ra values.
Stainless components help minimize bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
Stainless steel sanitary pipe fittings are important in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish minimizes contamination risk and makes cleaning easier. This guide will cover common grades, typical component families, and finish options for hygienic performance.
Materials And Grades Commonly Used
Type 304 stainless steel is known for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L offers superior resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L early in design streamlines procurement of SS Sanitary Fittings and related parts.
Common Product Types And Their Roles
Ferrules are the primary connection points for butt-weld and weld-in assemblies. They are typically available in 304 or 316L with polished internal diameters to match process piping requirements.
Two-piece clamps, known as Tri-Clamp or Tri-Clover style, support quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings ensure smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings control flow while maintaining cleanable contours. Designing with compatible SS Sanitary Fittings helps minimize leaks, downtime, and maintenance problems.
Surface Finish Importance For Cleanability
Surface roughness directly influences how residues cling to metal surfaces. A 32RA internal finish is a common spec that combines cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment helps minimize microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is simpler.
| Component | Common Material | Common Finish | Typical Application |
|---|---|---|---|
| Ferrules for welded assemblies | 304 stainless or 316L stainless | 32RA internal/external finish | Sanitary welded pipe ends |
| Tri-Clamp two-piece clamps | 316L for demanding use | 32RA or electropolished | Quick-release hygienic joints |
| Couplings and weld fittings | 304 / 316L | 32RA with optional electropolish | Welded joins and directional changes |
| Sanitary Hose Fittings | 316L common | Electropolished where product contact occurs | Flexible connections, transfer lines |
| Sanitary Valves And Fittings | 316L commonly used for product-contact areas | Smooth polished flow paths | Flow control with hygienic profiles |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings adhere to strict dimensional standards, ensuring compatibility across manufacturers. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. These standards streamline the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, compare size ranges, material specifications, and surface finishes. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs cover clamps, ferrules, and gasket sets, sized in inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting entry should include OAL, ID/OD finish, and compatible gasket material. This helps ensure the correct part is selected when ordering.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material affects both longevity and cleaning performance. 316L ferrules deliver superior resistance to chlorides in harsh environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog supports quick replacement of Triclover Fittings, minimizing downtime. Seek suppliers that show detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section will review common connection styles, brand interchangeability, and customer feedback on supplier reliability.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different advantages for assembly speed, cleanability, and leak risk.
Clamp connections are known for their quick assembly and ease of disassembly for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings follow common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can lead to corrosion or trap product residues.
Customer feedback provides practical insights into supplier reliability. Reviews for CSI mention consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets limit downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Type | Best Use | Hygienic Cleanability | Cross-Brand Notes |
|---|---|---|---|
| Tri-Clamp clamp connection | Frequent disassembly; product contact lines | Easy cleaning when gasket and ferrules match | High if size and sealing face match; CSI fittings usually fit standard systems |
| Butt-weld and socket-weld fittings | Fixed sanitary piping where cleanability is critical | Very high when welded and polished correctly | Standard dimensions support cross-brand ferrule and coupling compatibility |
| Threaded fitting connection | Utility lines and non-product-contact service | Lower cleanability where threads contact process fluids | Less common for sanitary product lines; check material and finish |
| Hose with Ferrule | Flexible runs and transfer lines | Good if ferrule and clamp are matched | Needs the correct ferrule profile and Sanitary Coupling to prevent leaks |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Selecting the correct sanitary components requires a focused review of size, material, finish, and pressure. This guide guides you match size, material, and finish to your process needs. Use the checks below to reduce downtime and support hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC markings, then verify DN-to-TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is a critical part of sanitary fitting specification. For routine food and beverage lines, 304 satisfies strength and cleanability needs. For pharmaceutical or chloride-exposed processes, choose 316L for superior corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket choice influence cleanability and seal life. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Review process pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings provide conductivity and antimicrobial benefits in select systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final checks save costs. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is essential in hygienic systems. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Keeping detailed records of materials, finishes, and maintenance is important for traceability and audits.
Correct assembly steps
Start by cleaning ferrule faces thoroughly and checking gaskets for cuts, deformation, or other defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Guidance for Sanitary Weld Fittings
For weld joints, prepare tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If needed, rework rough spots through controlled grinding and electropolishing to restore low roughness and maintain hygiene.
Regular sanitary maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Common issue troubleshooting
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and create leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, confirm the correct gasket material and durometer, and verify that groove dimensions match ferrule specifications.
Surface damage repair considerations
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches can be polished out and then electropolished to restore the Ra levels. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and maintenance records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Service Task | Frequency | Main Step | Notes |
|---|---|---|---|
| Clamp torque verification | After installation and on a monthly schedule | Check with calibrated torque wrench | Use manufacturer torque table for Sanitary Coupling sizes |
| Gasket inspection/replacement | Every 3–12 months or on failure | Look for damage, compression set, or extrusion | Replace with matching material and durometer |
| Surface finish inspection | After weld work and during quarterly checks | Measure Ra, inspect visually | Restore finish when roughness exceeds the process specification |
| Weld profile inspection | After installation, then yearly | Inspect for undercut, porosity, profile | Repair and re-polish Sanitary Weld Fittings as needed |
| CIP and SIP validation | Per process cycle | Track time, temperature, chemistry, and concentration | Document results for validation and regulatory review |
Where To Buy: Sanitary Fittings Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is essential. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, and dimensional specs. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report fast shipping for common parts and responsive service for quality or order questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Catalog Item | Listed Size | Grade | Finish | Typical Catalog Price |
|---|---|---|---|---|
| Two-piece single-pin clamp | Quarter-inch to three-quarter-inch | Type 304 stainless steel | Standard finish | $3.91 |
| Two-piece single-pin clamp | 1 inch | 304 | Standard catalog finish | Approx. $4.91 |
| Two-piece single-pin sanitary clamp | Two-inch size | 304 stainless | Standard | Approx. $5.99 |
| Two-piece single-pin clamp | 2.5″ | Type 304 stainless steel | Standard finish | $6.93 |
| Two-piece single-pin clamp | 3″ | 304 | Standard | Approx. $7.54 |
| Two-piece single-pin clamp | Four-inch size | 304 stainless | Standard finish | Approx. $9.16 |
| Ferrule TC | 2″ size, 1.125″ overall length | 316L | 32RA ID/OD | 4.24 USD |
| TC sanitary ferrule | 2 inch with 1.125 inch OAL | 304 | 32RA internal and external finish | $4.06 |
| Ferrule TC | 3″ | 316L stainless | 32RA internal and external finish | Approx. $6.15 |
| High-pressure sanitary clamp | 1.5 inch | 316 stainless | Polished sanitary finish | 12.93 USD |
| High-pressure double-bolt clamp | 2 inch | 316 | Polished | $14.62 |
| High-pressure double-bolt clamp | 3 inch | 316 | Polished | $20.26 |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, focus on catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Final Thoughts
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, supports cleanability. These choices can significantly reduce contamination risk. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When choosing fittings, evaluate material grade, surface finish, connection type, and pressure needs. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. High-pressure clamps should be used where necessary. Consistency in gaskets, clamps, and ferrules limits leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When searching for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and reliable sources help minimize downtime. That helps protect product quality in hygienic processing environments.
